`timescale 1ns / 1ps

module DataPath(
    input  logic       clk,
    input  logic       reset,
    input  logic       RFSrcMuxSel,
    input  logic [2:0] RAddr1,
    input  logic [2:0] RAddr2,
    input  logic [2:0] WAddr,
    input  logic       we,
    output logic       R1Le10,
    input  logic       OutPortEn,
    output logic [7:0] OutPort
    );

    logic [7:0] AdderResult, RFSrcMuxOut;
    logic [7:0] RData1, RData2;

    mux_2X1 U_RFSrcMux (
        .sel  (RFSrcMuxSel),
        .x0   (AdderResult),
        .x1   (1),
        .y    (RFSrcMuxOut)
    );

    RegFile U_RegFile (
        .clk     (clk),
        .RAddr1  (RAddr1),
        .RAddr2  (RAddr2),
        .WAddr   (WAddr),
        .we      (we),
        .WData   (RFSrcMuxOut),
        .RData1  (RData1),
        .RData2  (RData2)
    );

    comparator U_R1Le10 (
        .a      (RData1),
        .b      (8'd10),
        .lt     (R1Le10)
    );

    adder U_Adder (
        .a       (RData1),
        .b       (RData2),
        .sum     (AdderResult)
    );

    register U_OutPort (
        .clk     (clk),
        .reset   (reset),
        .en      (OutPortEn),
        .d       (RData1),
        .q       (OutPort)
    );

endmodule

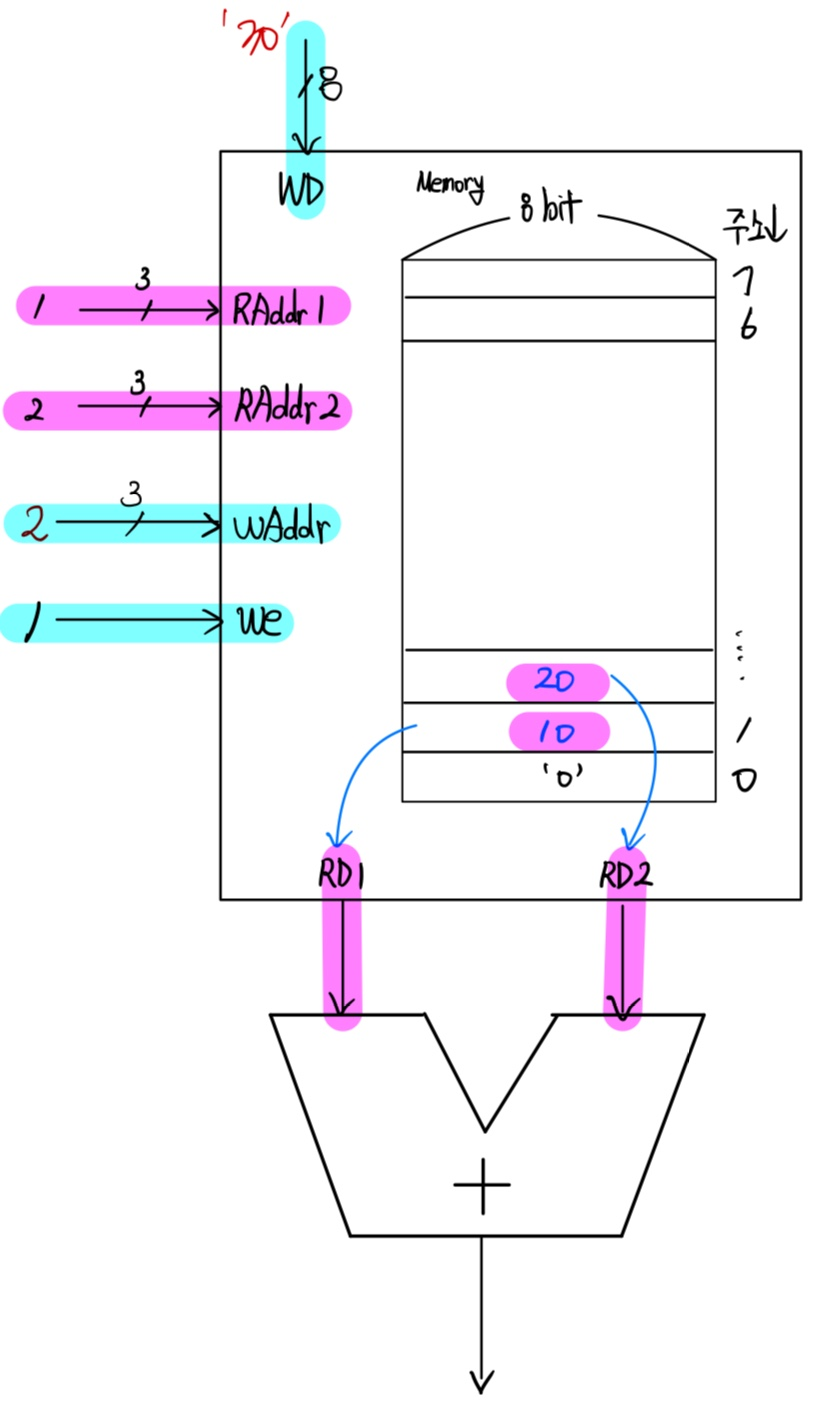

module RegFile (
    input   logic       clk,
    input   logic [2:0] RAddr1,
    input   logic [2:0] RAddr2,
    input   logic [2:0] WAddr,
    input   logic       we,
    input   logic [7:0] WData,
    output  logic [7:0] RData1,
    output  logic [7:0] RData2
    );

    logic [7:0] mem [0:2**3-1]; // 8bit 8개 (Addr 개수)

    always_ff @(posedge clk) begin
        if(we) begin
            mem[WAddr] <= WData;
        end
    end

    assign RData1 = (RAddr1 == 0) ? 8'b0 : mem[RAddr1];
    assign RData2 = (RAddr2 == 0) ? 8'b0 : mem[RAddr2];

    endmodule

module register (
    input  logic       clk,
    input  logic       reset,
    input  logic       en,
    input  logic [7:0] d,
    output logic [7:0] q
    );

    always_ff @(posedge clk or posedge reset) begin
        if(reset) begin
            q <= 0;
        end
        else begin
            if(en) begin
                q <= d;
            end
        end
    end

    endmodule

module mux_2X1 (
    input  logic       sel,
    input  logic [7:0] x0,
    input  logic [7:0] x1,
    output logic [7:0] y
    );

    always_comb begin
        y = 8'b0;
        case (sel)
            1'b0: y = x0;
            1'b1: y = x1;
        endcase
    end

    endmodule

module adder (
    input  logic [7:0] a,
    input  logic [7:0] b,
    output logic [7:0] sum
    );

    assign sum = a + b;

    endmodule

module comparator (
    input  logic [7:0] a,
    input  logic [7:0] b,
    output logic       lt
    );

    assign lt = a <= b;

    endmodule
